MAF Sensor/IAT Sensor Replacement

  1. Disconnect the MAF sensor/I AT sensor 5P connector (A).

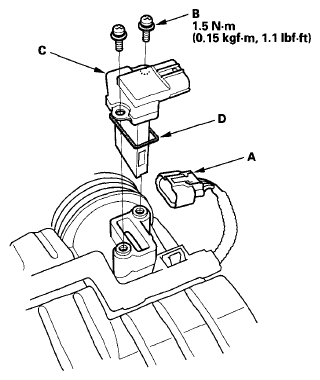

    Fig 1: Identifying MAF Sensor/I At Sensor 5P Connector
    G06273100Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Remove the bolts (B).
  3. Remove the MAF sensor/IAT sensor (C).
  4. Install the parts in the reverse order of removal with a new O-ring (D).
