View 126 - Accessory Power Socket Relay, Front And Accessory Power Socket Relay, Console Connector View (Except Navigation)
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

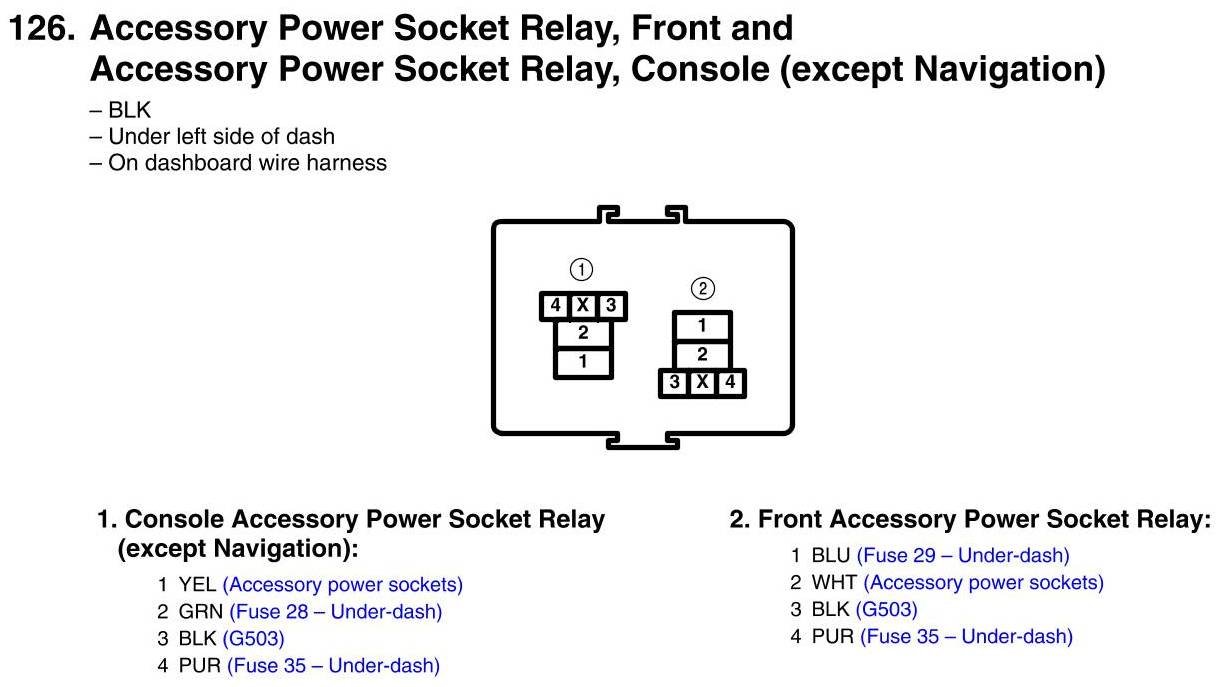

View 126 - Accessory Power Socket Relay, Front And Accessory Power Socket Relay, Console Connector View (Except Navigation)
