Climate Control Unit Bulb Replacement

Climate Control Unit Bulb Replacement

1. Remove the climate control unit Climate Control Unit Removal/Installation.

2. Discharge the static electricity (which may have accumulated on you when you removed the climate control unit) by touching the door striker or another unpainted metal body part.

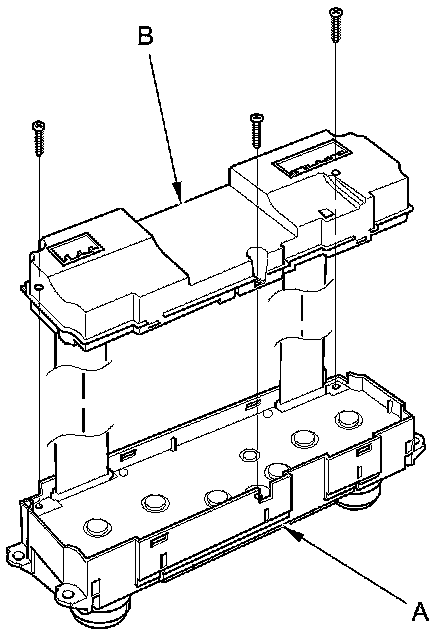

3. Remove the self-tapping screws, then carefully separate the climate control unit display (A) from the control unit (B). Do not kink or pull on the wires between the display and the control panel. Do not touch the electronic components on the printed circuit board in the control panel.

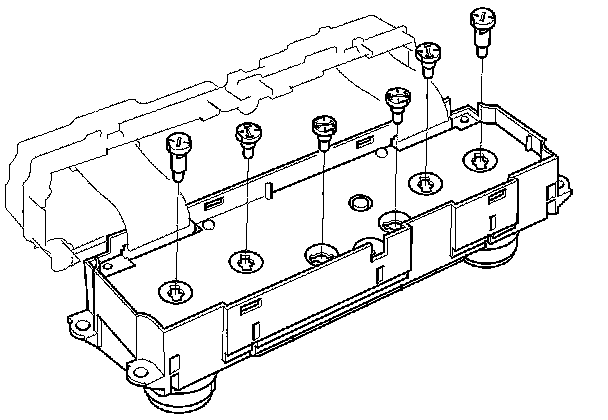

4. Remove the bulbs with a flat-tip screwdriver.





5. Install the bulbs in the reverse order of removal.
