CKP Sensor Replacement

CKP Sensor Replacement

1. Remove the splash shield; 2-door Front Splash Shield Replacement (2-Door), 4-door Front Splash Shield Replacement (4-Door).

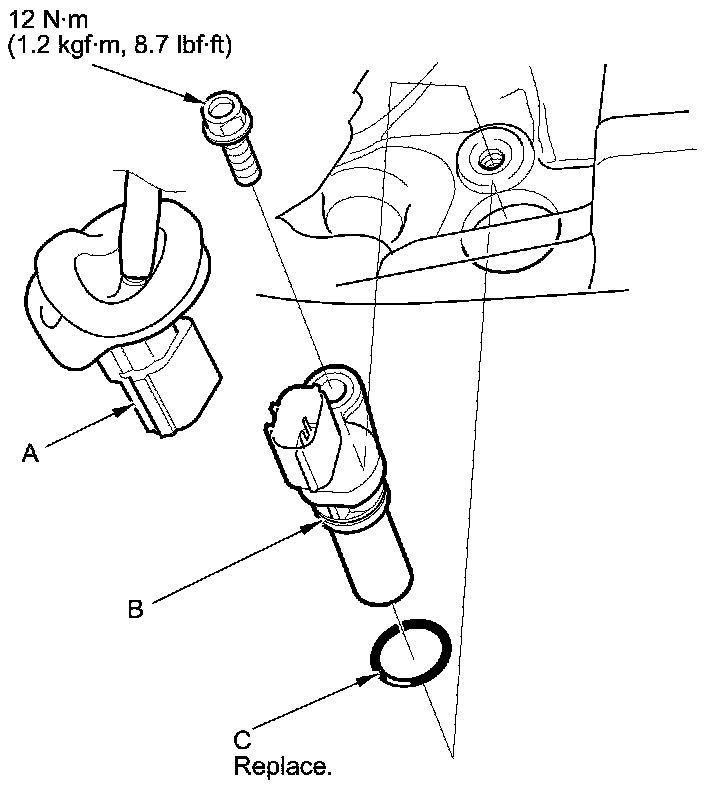

2. Disconnect the CKP sensor 3P connector (A).





3. Remove the CKP sensor (B).

4. Install the parts in the reverse order of removal with a new O-ring (C).

5. Do the CKP pattern clear/CKP pattern learn procedure.
