Audio Unit (without Navigation) (View 200)

Behind Audio Unit

Connector A

GRY
On Dashboard Wire Harness

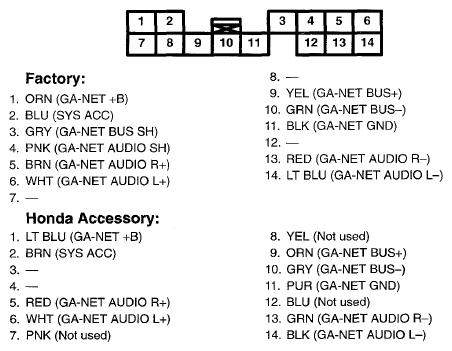

Fig 1: Audio Unit (Without Navigation) Connector Terminal - Connector A (View 200)

Connector E (USB Adapter)
- WHT
- On USB Harness

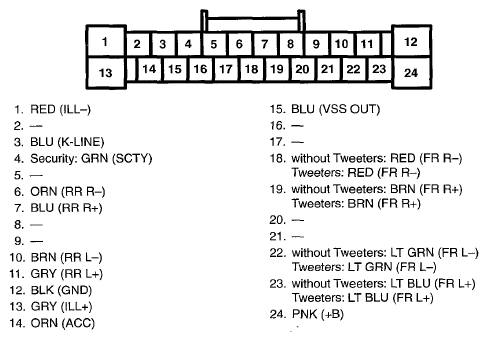

  Fig 2: Audio Unit (USB Adapter) Connector Terminal - Connector E (View 200)
Connector G
- GRY
- On AM/FM Antenna Sub-lead Harness

  Fig 3: Audio Unit Connector Terminal - Connector G (View 200)
