USB Adapter Unit (USB Adapter) (View 210)

Behind Audio Unit (without Navigation)
Behind Glove Box (Navigation)
Connector A
- WHT
- On USB Harness (without Navigation)
- On Dashboard Wire Harness (Navigation)

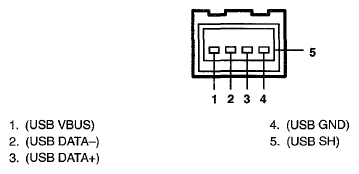

  Fig 1: USB Adapter Unit (USB Adapter) Connector Terminal - Connector A (View 210)
Connector B
- GRY
- On USB Adapter Sub-harness

  Fig 2: USB Adapter Unit (USB Adapter) Connector Terminal - Connector B (View 210)
