Audio Remote Switch Replacement

WARNING: This page is about a different car, the 2013 Honda Fit and 2012 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.

SRS components are located in this area. Review the SRS component location COMPONENT LOCATION INDEX , and the precautions and procedures PRECAUTIONS AND PROCEDURES in the SRS section before doing repairs or service.

Remove the steering wheel STEERING WHEEL REMOVAL
Remove the screws, and steering wheel rear cover (A).

Fig 1: Identifying Steering Wheel Rear Cover With Screws
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the paddle shifter + (upshift switch) PADDLE SHIFTER + (UPSHIFT SWITCH) REPLACEMENT and paddle shifter - (downshift switch) PADDLE SHIFTER -- (DOWNSHIFT SWITCH) REPLACEMENT

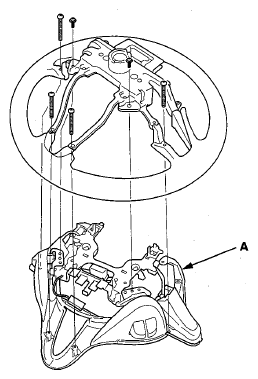

Remove the screws and the steering wheel trim (A).

Fig 2: Identifying Steering Wheel Trim With Screws
Courtesy of AMERICAN HONDA MOTOR CO., INC.

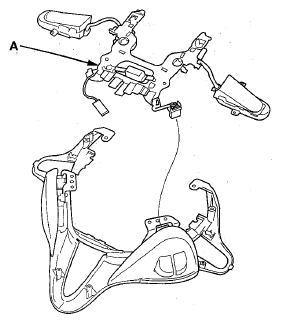

Disconnect the connectors, and remove the harness guide (A).

Fig 3: Identifying Harness Guide With Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.

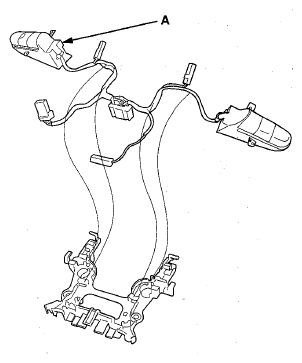

Remove the audio remote switch (A).

Fig 4: Identifying Audio Remote Switch
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the audio remote switch in the reverse order of removal.
