Without navigation (with USB adapter unit)

WARNING: This page is about a different car, the 2013 Honda Fit and 2012 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the audio unit (see AUDIO UNIT REMOVAL/INSTALLATION  ).
  2. Disconnect the connector from the USB adapter unit.
  3. Remove the bolts and the USB adapter unit (A) from the bracket (B).

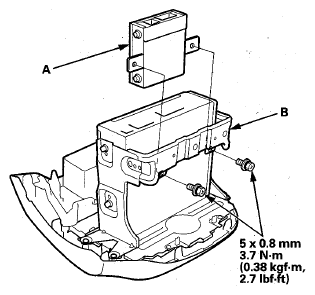

    Fig 1: Usb Adapter Unit, Bracket And Bolts With Torque Specifications
    G08083136Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Install the USB adapter unit in the reverse order of removal.
