Monitor Check: Navi

WARNING: This page is about a different car, the 2013 Honda Fit and 2012 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.

If you selected the Navi, use the joystick to move the picture up/down or left/right, then select the Set to save the selection. Do not adjust the monitor position unless directed by a service bulletin. The Default resets the display position to factory specifications.

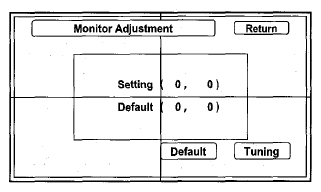

Fig 1: Screen Display - Monitor Adjustment (Navi)
G08083188Courtesy of AMERICAN HONDA MOTOR CO., INC.
