A/T Gear Position Indicator Panel Light/Park Pin Switch/Shift Lock Solenoid (A/T) (View 150)
GRY
Under Center Console
On Dashboard Wire Harness

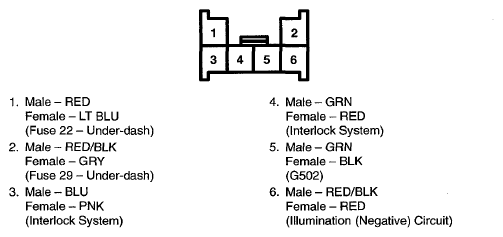

Fig 1: A/T Gear Position Indicator Panel Light/Park Pin Switch/Shift Lock Solenoid (A/T) Connector Terminal (View 150)
