Under-dash Fuse/Relay Box (View 209)

Behind Left Kick Panel

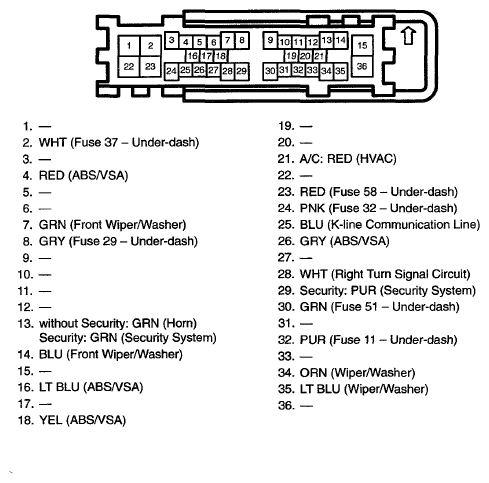

Connector A
- LT BLU/WHT
- On Right Engine Compartment Wire Harness

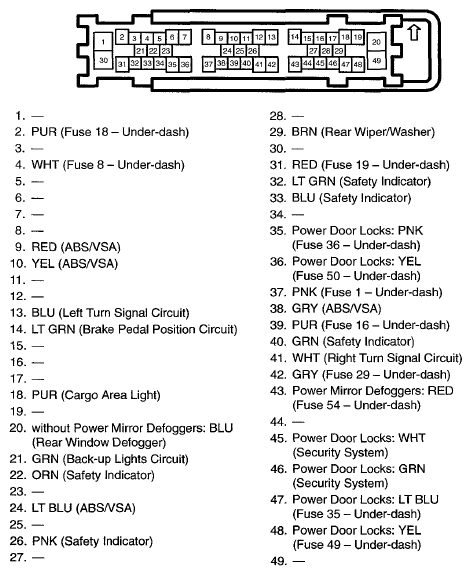

  Fig 1: Under-Dash Fuse/Relay Box Connector Terminal - Connector A (View 209)

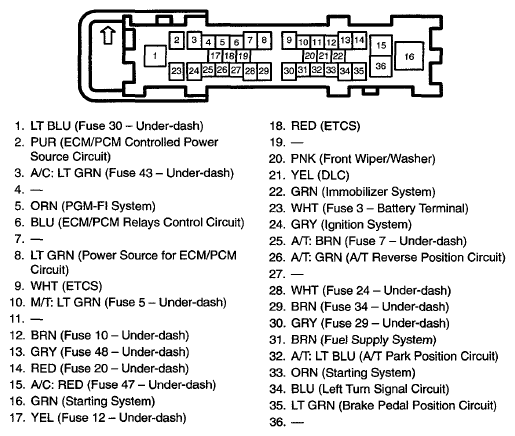

Connector B
- WHT/GRN
- On Left Engine Compartment Wire Harness

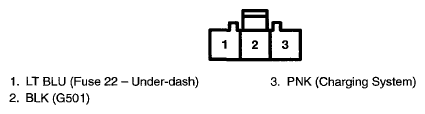

  Fig 2: Under-Dash Fuse/Relay Box Connector Terminal - Connector B (View 209)

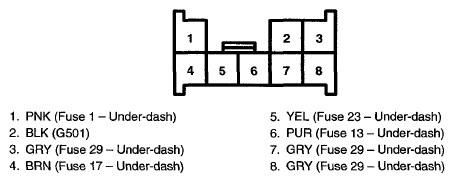

Connector C
- GRN/WHT
- On Floor Wire Harness

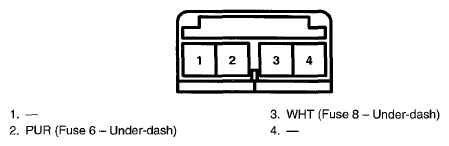

  Fig 3: Under-Dash Fuse/Relay Box Connector Terminal - Connector C (View 209)

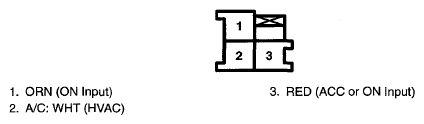

Connector E
- LT GRN
- On Driver's Door Wire Harness

  Fig 4: Under-Dash Fuse/Relay Box Connector Terminal - Connector E (View 209)

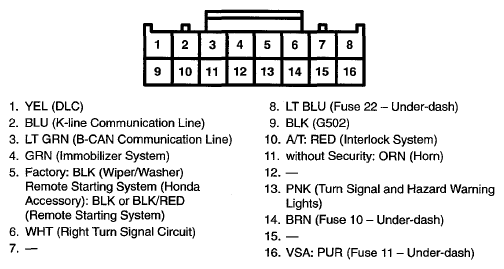

Connector F
- LT GRN
- On Driver's Door Wire Harness

  Fig 5: Under-Dash Fuse/Relay Box Connector Terminal - Connector F (View 209)

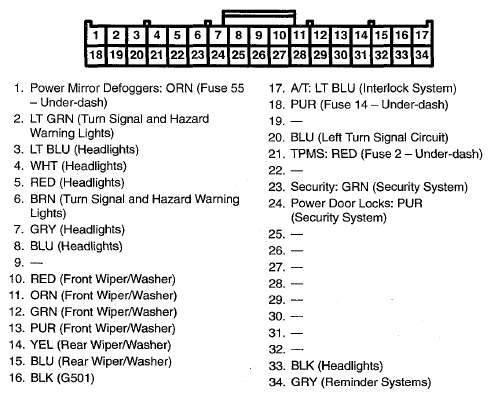

Connector G
- LT GRN
- On Roof Wire Harness

  Fig 6: Under-Dash Fuse/Relay Box Connector Terminal - Connector G (View 209)

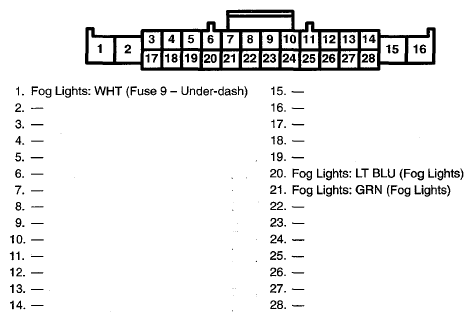

Connector H (Option Connector)
- N/A
- On Dashboard Wire Harness

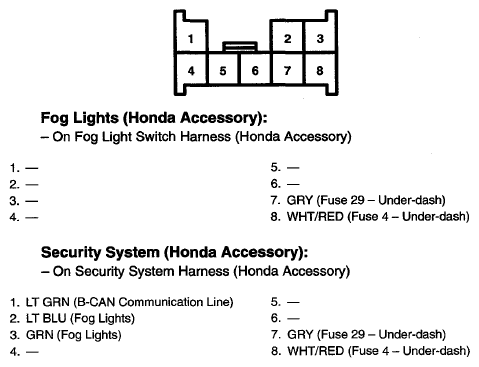

  Fig 7: Under-Dash Fuse/Relay Box Connector Terminal - Connector H (View 209)
Fog Lights (Honda Accessory):
- On Fog Light Switch Harness (Honda Accessory)
Security System (Honda Accessory):
- On Security System Harness (Honda Accessory)

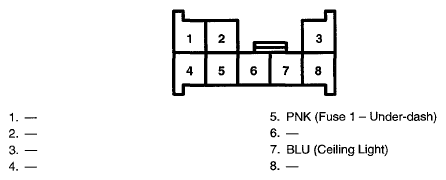

Connector K
- LT GRN
- On Dashboard Wire Harness

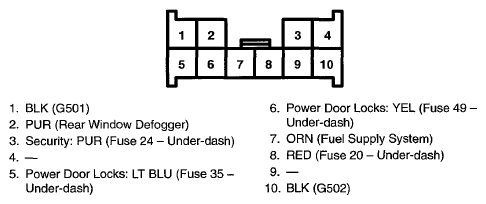

  Fig 8: Under-Dash Fuse/Relay Box Connector Terminal - Connector K (View 209)
Connector M
- LT GRN
- On Dashboard Wire Harness

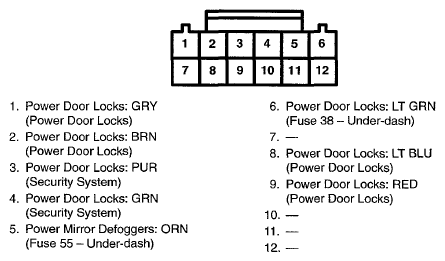

  Fig 9: Under-Dash Fuse/Relay Box Connector Terminal - Connector M (View 209)
Connector N
- LT GRN
- On Dashboard Wire Harness

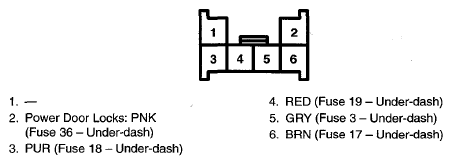

  Fig 10: Under-Dash Fuse/Relay Box Connector Terminal - Connector N (View 209)
Connector P
- YEL
- On Dashboard Wire Harness

  Fig 11: Under-Dash Fuse/Relay Box Connector Terminal - Connector P (View 209)
Connector Q
- LT GRN
- On Dashboard Wire Harness

  Fig 12: Under-Dash Fuse/Relay Box Connector Terminal - Connector Q (View 209)
Connector R
- LT GRN
- On Dashboard Wire Harness

  Fig 13: Under-Dash Fuse/Relay Box Connector Terminal - Connector R (View 209)
Connector S
- LT GRN
- On Dashboard Wire Harness

  Fig 14: Under-Dash Fuse/Relay Box Connector Terminal - Connector S (View 209)
Connector T
- LT GRN
- On Dashboard Wire Harness

  Fig 15: Under-Dash Fuse/Relay Box Connector Terminal - Connector T (View 209)
Connector W
- LT GRN
- On Dashboard Wire Harness

  Fig 16: Under-Dash Fuse/Relay Box Connector Terminal - Connector W (View 209)
Connector X
- LT GRN
- On Dashboard Wire Harness

  Fig 17: Under-Dash Fuse/Relay Box Connector Terminal - Connector X (View 209)
Connector Y (ELD Unit)
- LT GRN
- On Dashboard Wire Harness

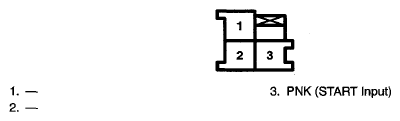

  Fig 18: Under-Dash Fuse/Relay Box Connector Terminal - Connector Y ELD Unit (View 209)
