- Remove the driver's airbag assembly DRIVER'S AIRBAG REPLACEMENT

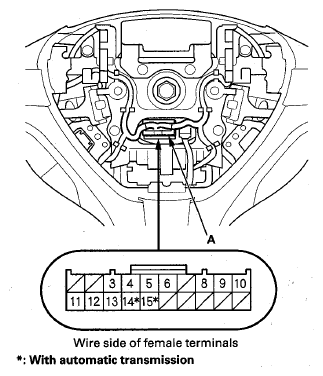

- Disconnect the cable reel 20P connector (A).
- Measure the resistance between terminals No. 3 and No. 6 in each switch position according to the table.
Position Resistance No button pressed About 10 kΩ MODE About 3.7 kΩ CH(+) About 1.7 kΩ CH(-) About 775 Ω (VOL. UP)↑ About 357 Ω (VOL. DOWN)↓ About 100Ω - If the resistance is not as specified, replace the audio remote switch (see AUDIO REMOTE SWITCH REPLACEMENT ).
