Speaker Check Mode

WARNING: This page is about a different car, the 2013 Honda Fit and 2012 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

There may be other self-diagnostic functions that are for factory use only.
If no sound is heard from the speakers, go to NO SOUND IS HEARD FROM THE SPEAKER(S)

Turn the ignition switch to ON (II).
Make sure the audio system is turned off.
Push and hold the preset No. 1 and No. 3 buttons.
While holding the buttons, push the power button (A) on.

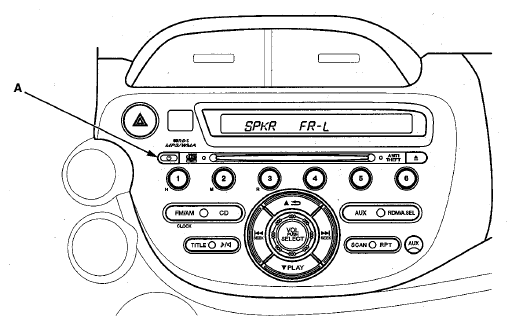

Fig 1: Identifying Power Button
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Release the buttons and the speaker check mode begins.

Each time you press the SKIP ( ) or SKIP ( ) button, the speaker outputs a beep and tests the speakers in the order listed.

NOTE: Adjust the volume level to a comfortable level with the VOL PUSH SELECT knob.

Order of Speakers

SKIP ( ) is pressed: (1)→(2)→(3)→(4)rarr;(5)

SKIP ( ) is pressed: (1)→(5)→(4)→(3)rarr;(2)

Speaker

Displayed Segments

(1)

Driver's door speaker and left tweeter⁽¹⁾

SPKR FR-L

(2)

Front passenger's door speaker and left tweeter⁽¹⁾

SPKR FR-R

(3)

Right rear door speaker⁽²⁾

SPKR RR-R

(4)

Left rear door speaker⁽²⁾

SPKR RR-L

(5)

All speakers

SPKR ALL

⁽¹⁾	With tweeter

⁽²⁾	With rear door speaker

If any speaker(s) fail to sound, go to symptom troubleshooting.
To end the speaker check mode, turn the audio unit off, or turn the ignition switch to LOCK (0).
NOTE: The volume level remains at the same level as when you did the speaker test. If you turned the volume up to do the speaker mode test, return the volume to its normal level.
