Speaker Test/Replacement: Tweeter

WARNING: This page is about a different car, the 2013 Honda Fit and 2012 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.
  1. Insert a flat-tip screwdriver in the groove (A), and carefully pry the tweeter grille (B).
    NOTE: Be careful not to damage the tweeter grille and the dashboard.

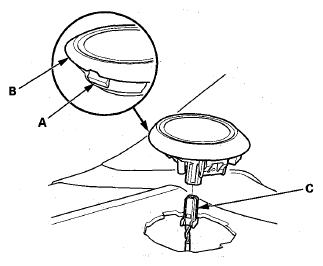

    Fig 1: Identifying Groove, Tweeter Grille And 2P Connector
    G08083139Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Disconnect the 2P connector (C) from the tweeter.
  3. Check the capacitor condition. If any malfunction is found, replace the tweeter.
  4. Remove the tweeter speaker (A) from the speaker grille (B).
    Fig 2: Measuring Resistance Between Soldered Joint And Terminal No. 2
    G08083140Courtesy of AMERICAN HONDA MOTOR CO., INC.
  5. Measure the resistance between the soldered joint and terminal No. 2, There should, be about 4 Ω.
  6. If the resistance is not as specified, replace the tweeter speaker.
  7. Install the tweeter speaker in the reverse order of removal.
    NOTE: Align the tweeter speaker connector with the cut-out on the speaker grille.
