HFT-Navigation Microphone Removal/Installation

WARNING: This page is about a different car, the 2013 Honda Fit and 2012 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.

Remove the front individual map light lens (A) using a flat-tip screwdriver.

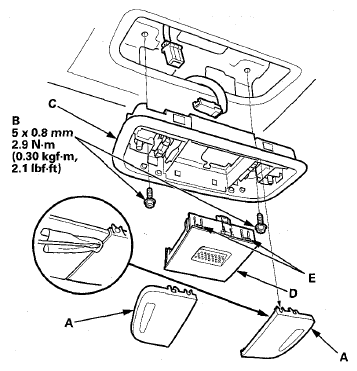

Fig 1: Identifying HFT-Navigation Microphone Replacement Components With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the bolts (B), then disconnect the connectors, and remove the map light housing (C).
Carefully pry off the microphone housing (D) from the map light housing while pressing the retaining tabs (E).
Install the microphone in the reverse order removal.
