Power Window Master Switch (View 195)
GRY
Driver's Door
On Driver's Door Wire Harness

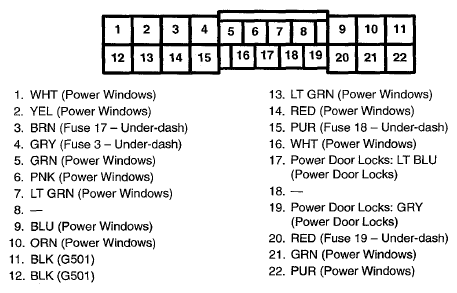

Fig 1: Power Window Master Switch Connector Terminal (View 195)
