Fuse To Components Index

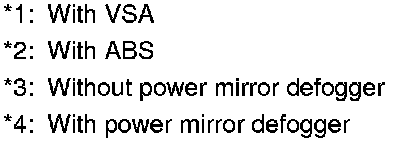

Fuse to Components Index

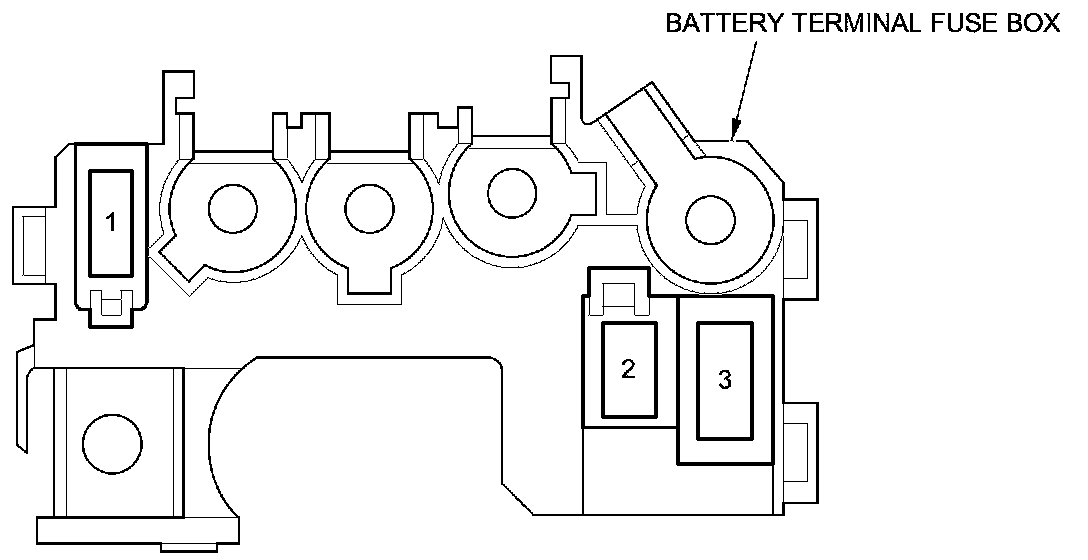

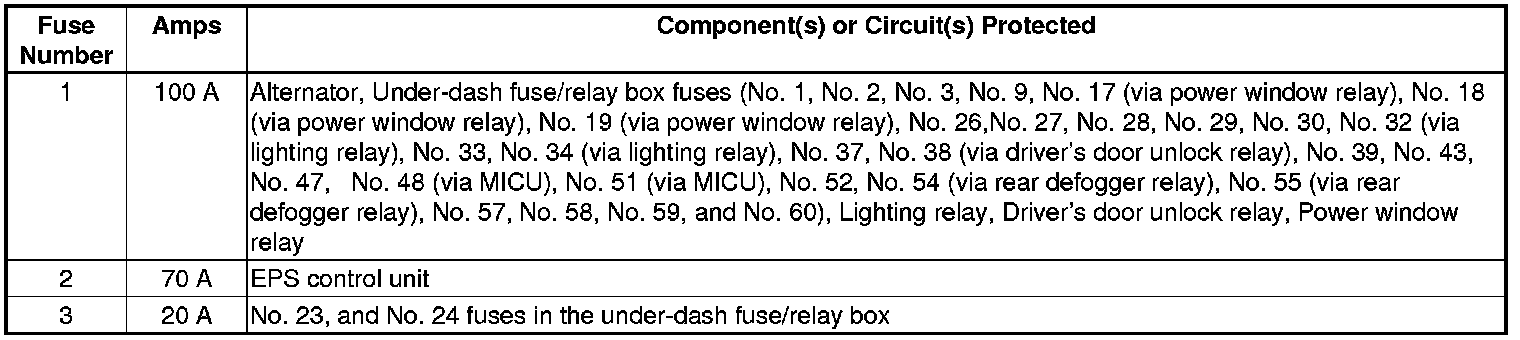

Battery Terminal Fuse Box

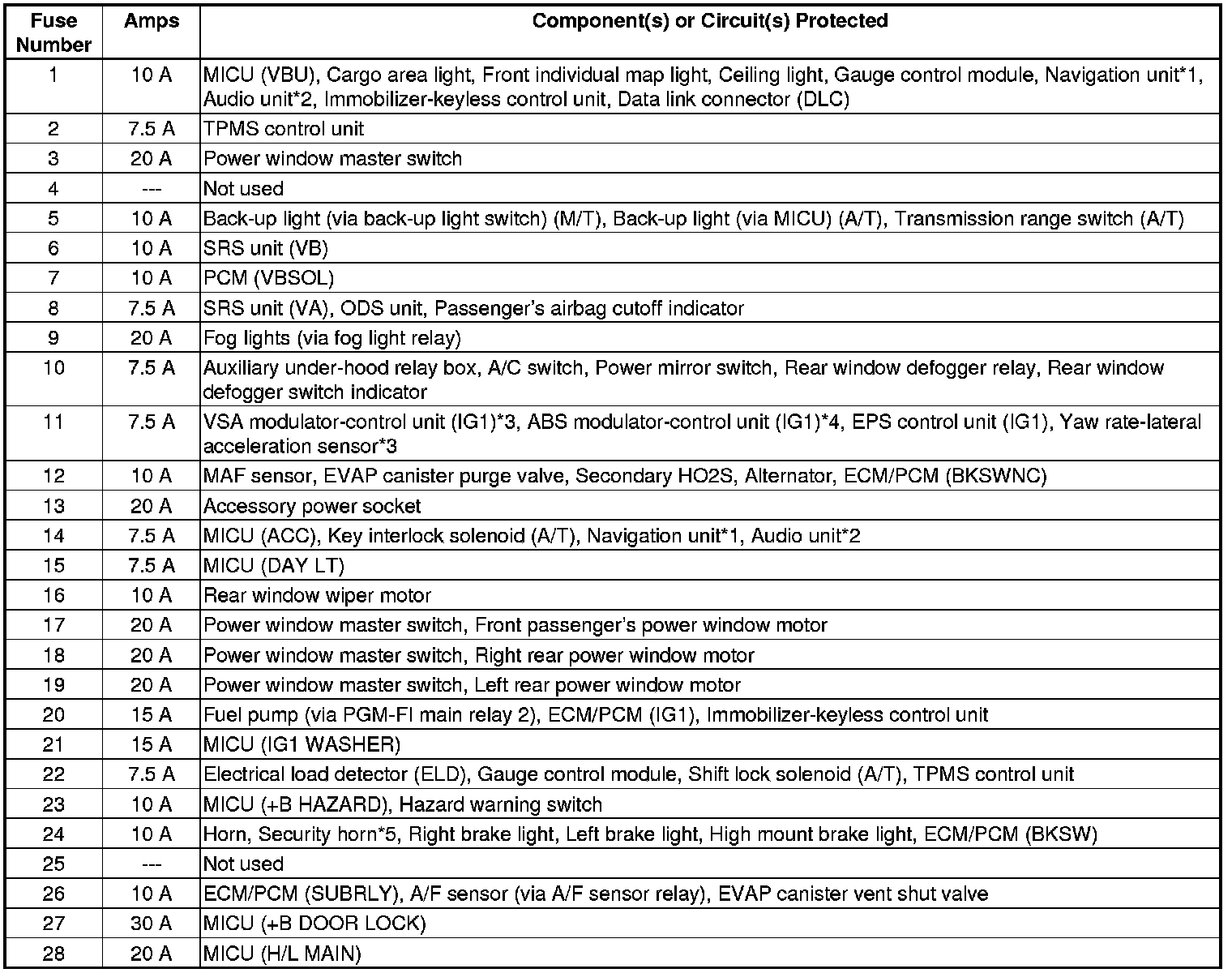

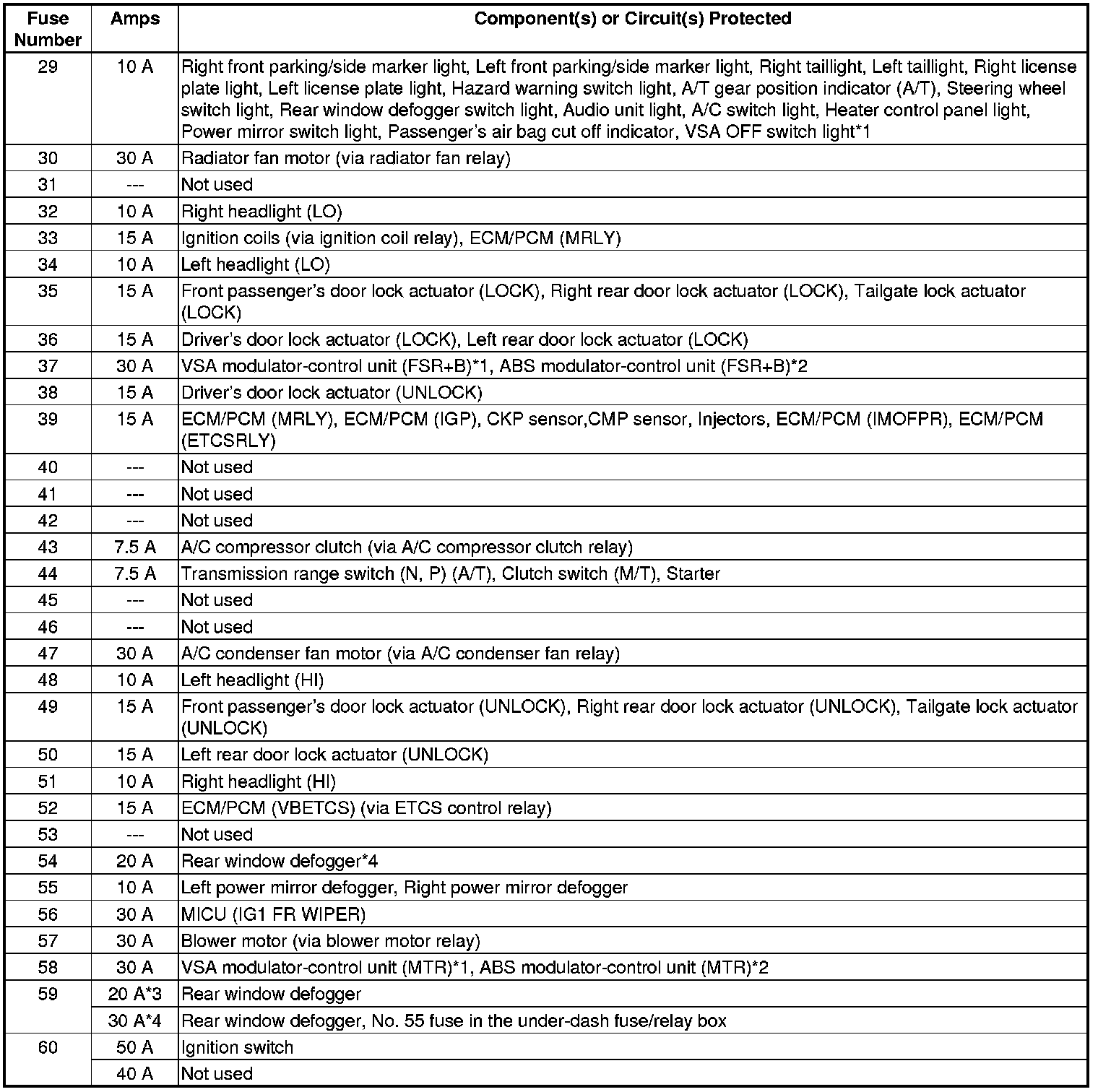

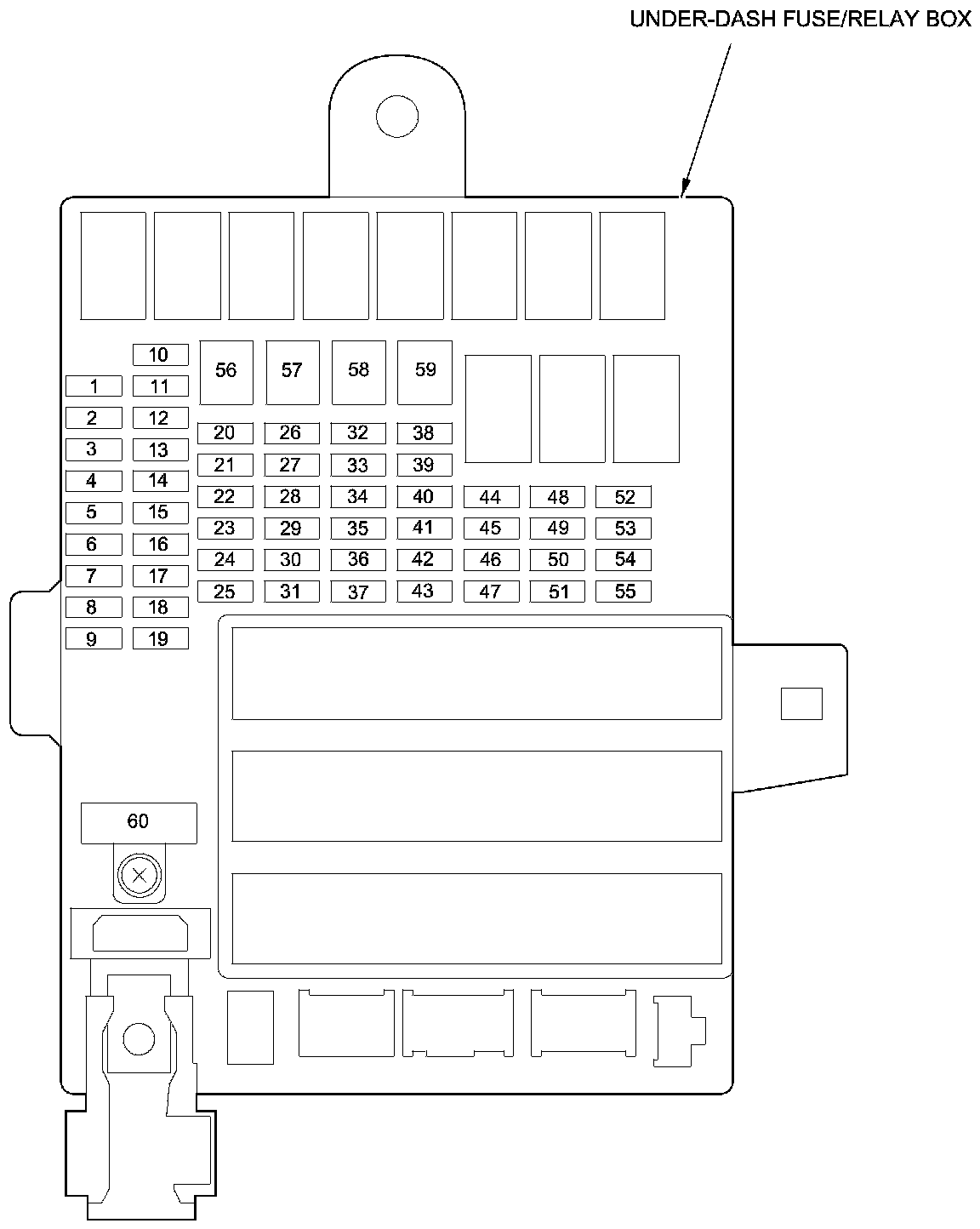

Under-dash Fuse/Relay Box

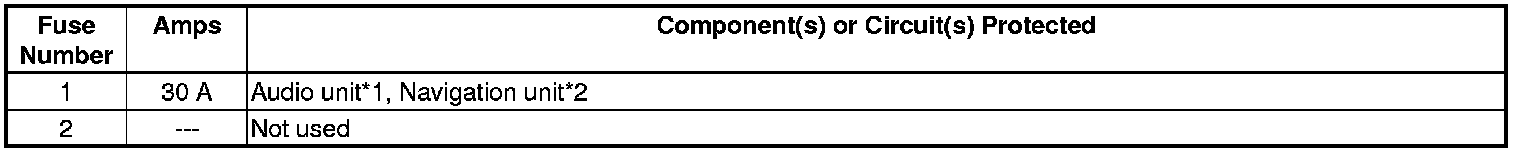

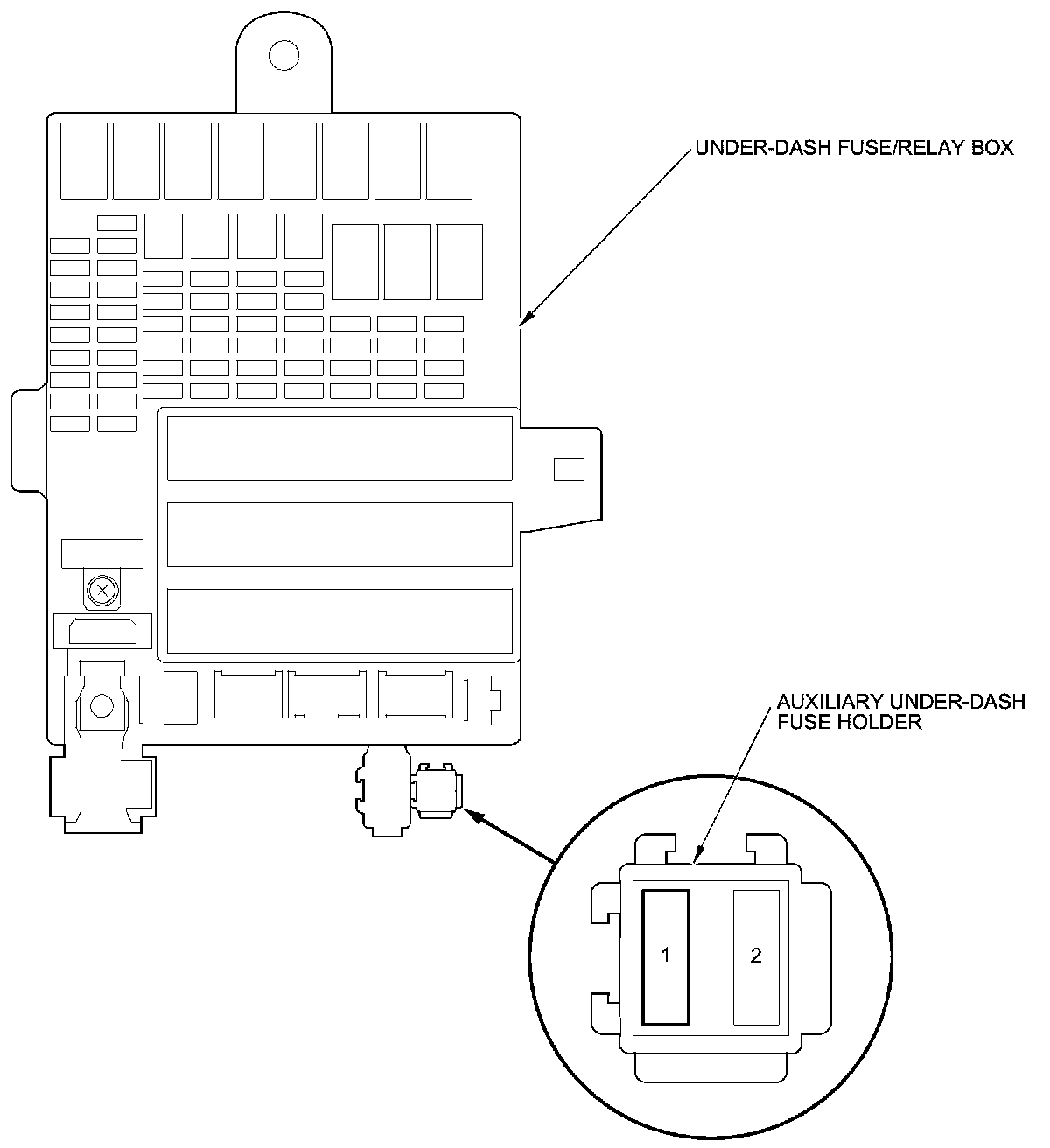

Auxiliary Under-dash Fuse Holder
