Combination Light Switch Connector End View (View 176)
BLK/WHT
In Steering Column Cover
On Dashboard Wire Harness

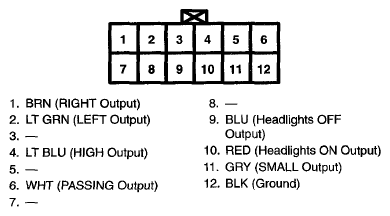

Fig 1: Combination Light Switch Connector Terminal (View 176)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
