Humidity/In-Car Temperature Sensor Connector End View (View 122)

• WHT
• Left Side of Dash
• On Dashboard Wire Harness

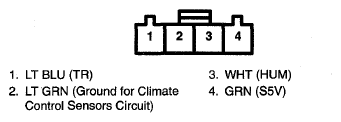

Fig 1: Humidity/In-Car Temperature Sensor Connector Terminal (View 122)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
