Phase Motor Current Sensor Connector End View (View 171)

• BLK
• Under IPU Lid
• On PCU Wire Harness

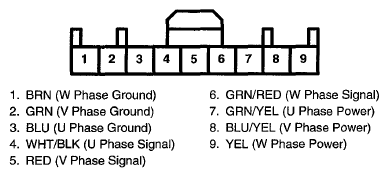

Fig 1: Phase Motor Current Sensor Connector Terminal (View 171)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
