Under-Dash Fuse/Relay Box Connector End View (View 228)

Under Left Side of Dash
Connector A
- LT BLU/WHT
- On Right Engine Compartment Wire Harness

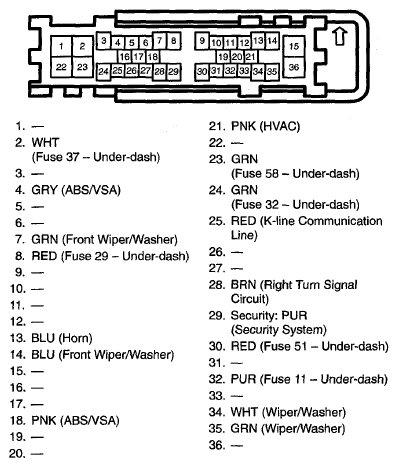

Fig 1: Under-Dash Fuse/Relay Box Connector Terminal - Connector A (View 228)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Connector B
- WHT
- On Left Engine Compartment Wire Harness

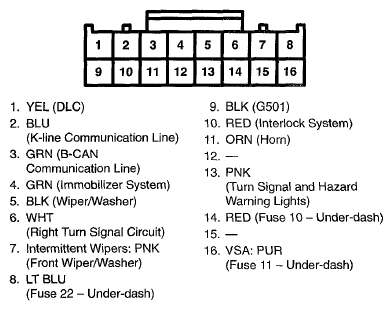

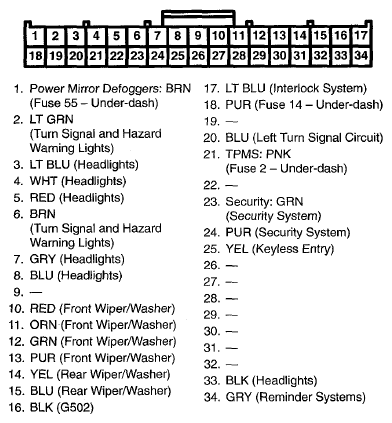

Fig 2: Under-Dash Fuse/Relay Box Connector Terminal - Connector B (View 228)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Connector C
- LT GRN/WHT
- On Driver's Side Wire Harness

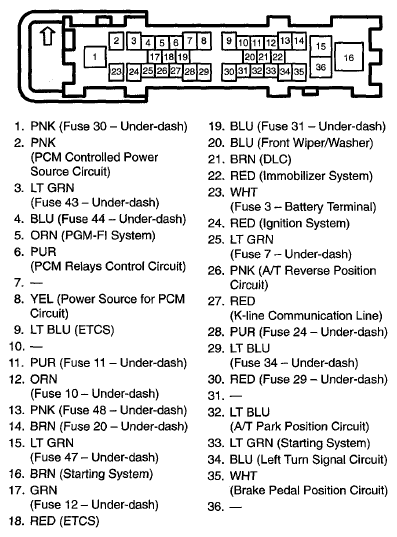

Fig 3: Under-Dash Fuse/Relay Box Connector Terminal - Connector C (View 228)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Connector E
- LT GRN
- On Driver's Door Wire Harness

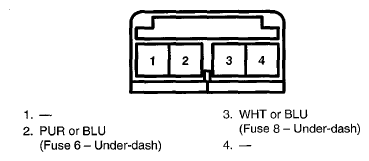

Fig 4: Under-Dash Fuse/Relay Box Connector Terminal - Connector E (View 228)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Connector F
- LT GRN/WHT
- On Driver's Door Wire Harness

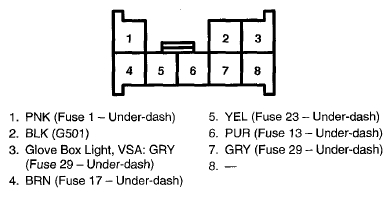

Fig 5: Under-Dash Fuse/Relay Box Connector Terminal - Connector F (View 228)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Connector G
- LT GRN
- On Roof Wire Harness

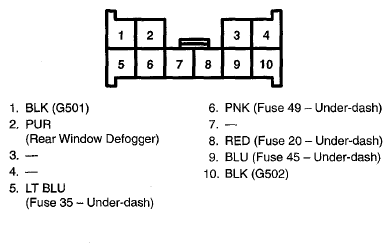

Fig 6: Under-Dash Fuse/Relay Box Connector Terminal - Connector G (View 228)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Connector H (Option Connector)
- N/A

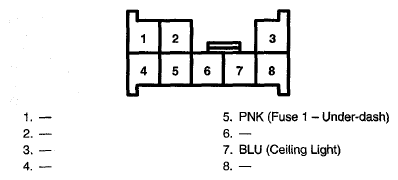

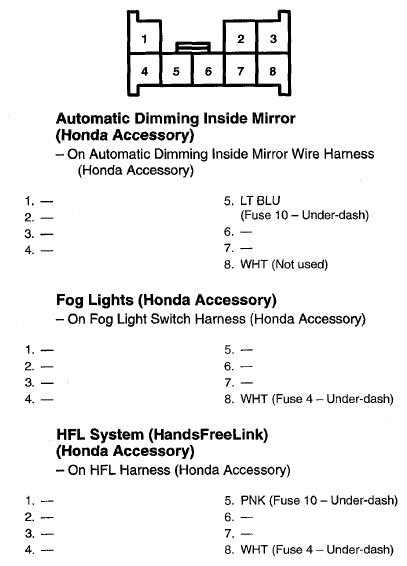

Fig 7: Under-Dash Fuse/Relay Box Connector Terminal - Connector H (View 228)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Automatic Dimming Inside Mirror (Honda Accessory)
- On Automatic Dimming Inside Mirror Wire Harness (Honda Accessory)
Fog Light (Honda Accessory)
- On Fog Light Switch Harness (Honda Accessory)
HFL System (HandsFreeLink) (Honda Accessory)
- On HFL Harness (Honda Accessory)
Connector K
- LT GRN
- On Dashboard Wire Harness

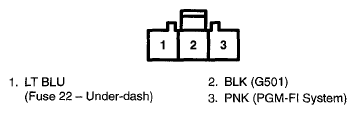

Fig 8: Under-Dash Fuse/Relay Box Connector Terminal - Connector K (View 228)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Connector M
- LT GRN
- On Dashboard Wire Harness

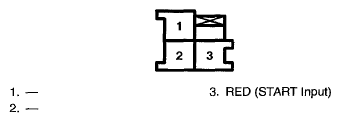

Fig 9: Under-Dash Fuse/Relay Box Connector Terminal - Connector M (View 228)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Connector N
- LT GRN/WHT
- On Dashboard Wire Harness

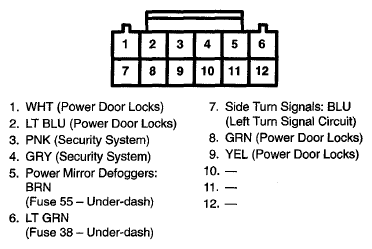

Fig 10: Under-Dash Fuse/Relay Box Connector Terminal - Connector N (View 228)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Connector P
- YEL
- On Dashboard Wire Harness

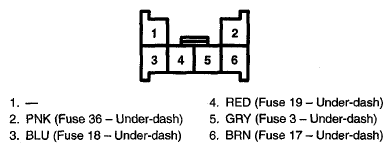

Fig 11: Under-Dash Fuse/Relay Box Connector Terminal - Connector P (View 228)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Connector Q
- LT GRN
- On Dashboard Wire Harness
Fig 12: Under-Dash Fuse/Relay Box Connector Terminal - Connector Q (View 228)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Connector R (Not Used)

Connector S
- LT GRN
- On Dashboard Wire Harness
Fig 13: Under-Dash Fuse/Relay Box Connector Terminal - Connector S (View 228)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Connector T
- LT GRN
- On Dashboard Wire Harness
Fig 14: Under-Dash Fuse/Relay Box Connector Terminal - Connector T (View 228)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Connector W
- LT GRN
- On Dashboard Wire Harness
Fig 15: Under-Dash Fuse/Relay Box Connector Terminal - Connector W (View 228)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Connector X
- LT GRN
- On Dashboard Wire Harness
Fig 16: Under-Dash Fuse/Relay Box Connector Terminal - Connector X (View 228)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Connector Y (ELD Unit)
- LT GRN
- On Dashboard Wire Harness
Fig 17: Under-Dash Fuse/Relay Box Connector Terminal - Connector Y (View 228)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
