XM Receiver Connector End View (Honda Accessory) (View 249)

• Behind Glove Box

Connector A

• WHT
• On XM Radio Harness (Honda Accessory)

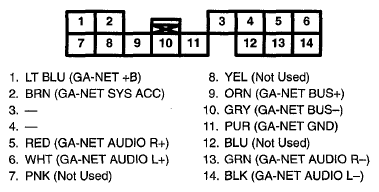

Fig 1: XM Receiver (Honda Accessory) Connector Terminal - Connector A (View 249)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Connector B

• N/A
• On XM Radio Adapter Sub-harness (Honda Accessory)
  Fig 2: XM Receiver (Honda Accessory) Connector Terminal - Connector B (View 249)

  Courtesy of AMERICAN HONDA MOTOR CO., INC.
