Cruise Control Combination Switch Test/Replacement

SRS components are located in this area. Review the SRS component locations (see COMPONENT LOCATION INDEX ), and the precautions and procedures (see PRECAUTIONS AND PROCEDURES ), before doing repairs or service.

1. Remove the driver's airbag (see DRIVER'S AIRBAG REPLACEMENT ).
2. Remove the steering wheel trim (see STEERING WHEEL DISASSEMBLY/REASSEMBLY ).
   Fig 1: Identifying Steering Wheel Trim

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
3. Remove the combination switch (see STEERING WHEEL DISASSEMBLY/REASSEMBLY ).
4. Check for continuity between the terminals in each cruise control combination switch position according to the table.
   • If there is continuity, and it matches the table, but the cruise control combination switch failure occurred on the cruise control input test, check and repair the wire harness on the switch circuit.
   • If there is no continuity in one or more positions, replace the switch.

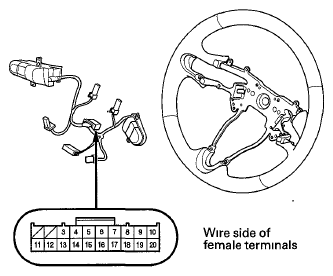

   Fig 2: Identifying Cruise Control Combination Switch Connector

   Courtesy of AMERICAN HONDA MOTOR CO., INC.

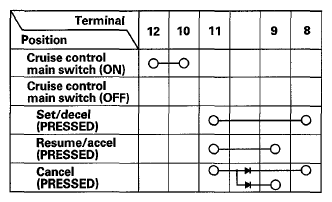

   Fig 3: Cruise Control Combination Switch Continuity Chart

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
5. Check for continuity between the terminals in according to the table.
   • If there is continuity, and it matches the table, check and repair the wire harness on the switch circuit.
   • If there is no continuity in one or more positions, replace the switch (see STEERING WHEEL DISASSEMBLY/REASSEMBLY ).
   Fig 4: Cruise Control Combination Switch Continuity Chart

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
