C302 Connector End View (View 201)

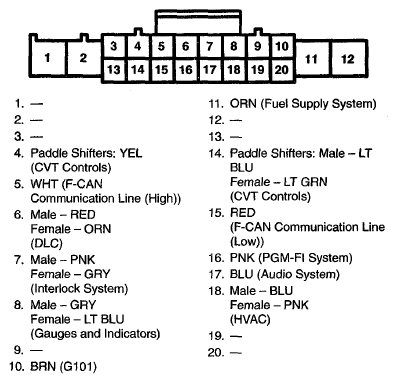

Fig 1: C302 Connector Terminal (View 201)
G07760787Courtesy of AMERICAN HONDA MOTOR CO., INC.
