C603 Connector End View (View 202)

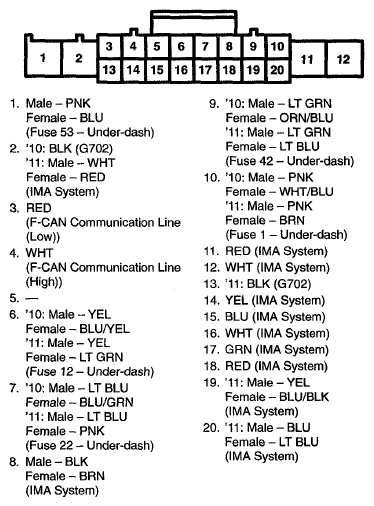

Fig 1: C603 Connector Terminal (View 202)
G07760788Courtesy of AMERICAN HONDA MOTOR CO., INC.
