Oil Pressure Switch Test
- Remove the engine undercover (see step 2
).

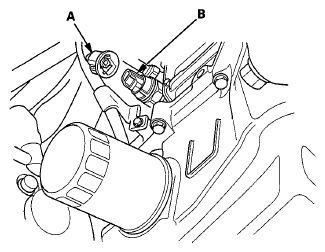

- Disconnect the oil pressure switch connector (A) from the oil pressure switch (B).
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Check for continuity between the positive terminal and the engine (ground). There should be continuity with the engine stopped. There should be no continuity with the engine running.
- Connect the oil pressure switch connector to the oil pressure switch.
- Install engine undercover (see step 2).
