Fuel Line Inspection

Check the fuel system lines and hoses for damage, leaks, and deterioration. Replace any damage parts.

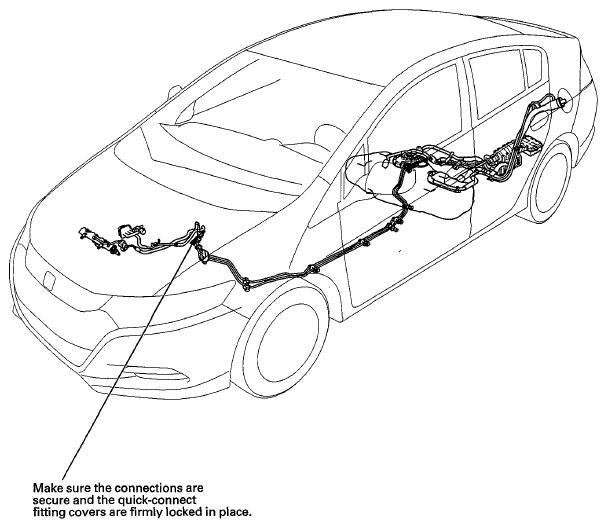

Fig 1: Identifying Fuel Line Connection (1 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Check all quick - connect fittings, and make sure they are properly positioned and tightened.

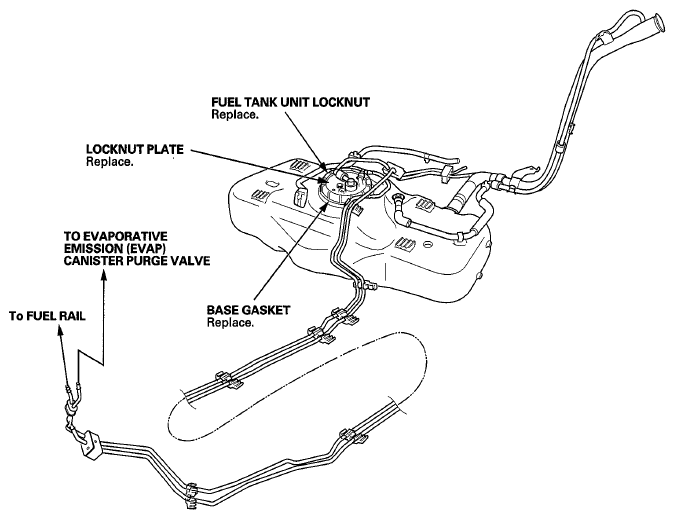

Fig 2: Identifying Fuel Line Connection (2 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
