Air Cleaner Removal/Installation

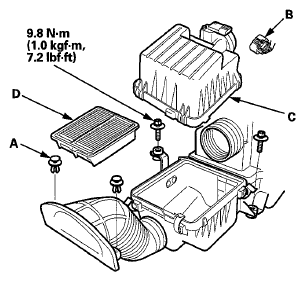

- Remove the clips (A).
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Disconnect the MAF sensor/IAT sensor connector (B), then remove the air cleaner housing cover (C), and the air cleaner element (D).
NOTE:
Be careful not to damage the MAF sensor/IAT sensor on the air cleaner housing cover.
- Remove the air cleaner housing (A).
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Install the parts in the reverse order of removal.
