A/F Sensor Connector End View (View 112)
BLK
Left Rear of Engine
On Engine Wire Harness

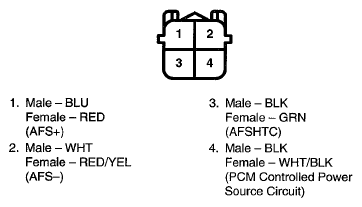

Fig 1: A/F Sensor Connector Terminal (View 112)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
