Blower Power Transistor Connector End View (View 113)

• NAT
• Under Right Side of Dash
• On A/C Wire Harness

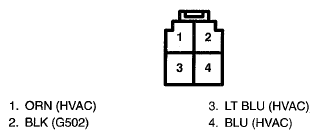

Fig 1: Blower Power Transistor Connector Terminal (View 113)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
