C501 Connector End View (View 135)
YEL
Left Rear of Floor
Connects Driver's Side Wire Harness to Floor Wire Harness

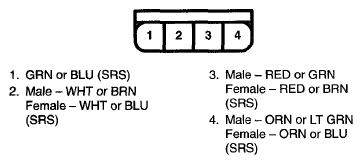

Fig 1: C501 Connector Terminal (View 135)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
