CVT Input Shaft (Drive Pulley) Speed Sensor Connector End View (View 92)
BLK
Front of Transmission Housing
On Engine Wire Harness

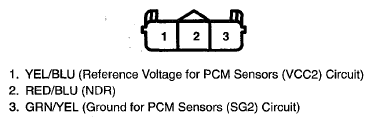

Fig 1: CVT Input Shaft (Drive Pulley) Speed Sensor Connector Terminal (View 92)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
