Cable Reel Connector End View (View 216)

Connector A

• YEL
• In Steering Column Cover
• On Dashboard Wire Harness

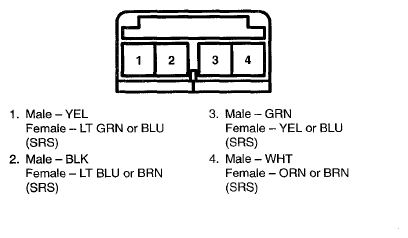

Fig 1: Cable Reel Connector Terminal - Connector A (View 216)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Connector B

• WHT
• In Steering Column Cover
• On Dashboard Wire Harness

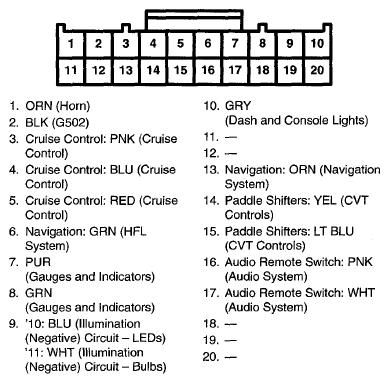

Fig 2: Cable Reel Connector Terminal - Connector B (View 216)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Connector C

• WHT
• Steering Wheel
• On Cable Reel Sub-harness

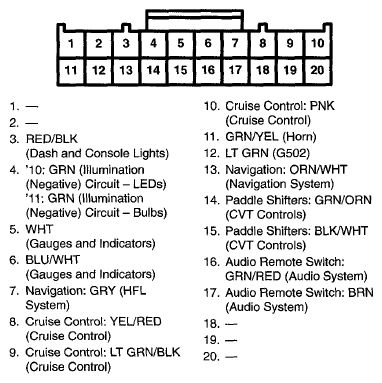

Fig 3: Cable Reel Connector Terminal - Connector C (View 216)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
