ECON Switch Connector End View (View 140)
WHT
Left Side of Dash
On Dashboard Wire Harness

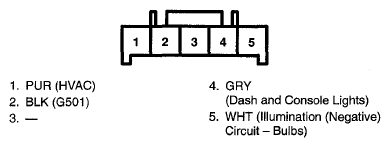

Fig 1: ECON Switch Connector Terminal (View 140)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
