EPS Torque Sensor Connector End View (View 94)
GRY
Left Rear of Engine Compartment
On EPS Sub-harness

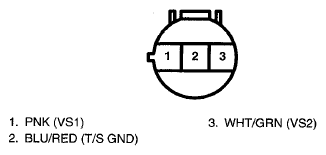

Fig 1: EPS Torque Sensor Connector Terminal (View 94)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
