Injector Connector End View (View 44)
BLK
Middle of Engine
On Engine Wire Harness

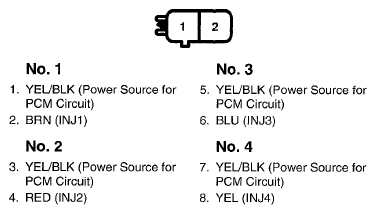

Fig 1: Injector Connector Terminal (View 44)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
