Junction Board Connector End View (View 177)
WHT
Under IPU Lid
Connects IPU Wire Harness to Junction Board Wire Harness

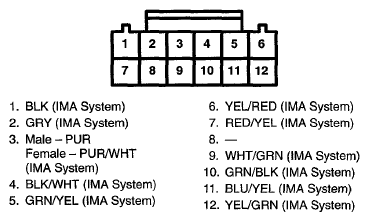

Fig 1: Junction Board Connector Terminal (View 177)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
