ODS Unit Connector End View (View 223)

BLK
Left Side of Front Passenger's Seat Back
Connector A
- To Side Element of Sensor

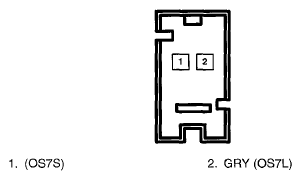

Fig 1: ODS Unit Connector Terminal - Connector A (View 223)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Connector B
- To Lower Element of Sensor

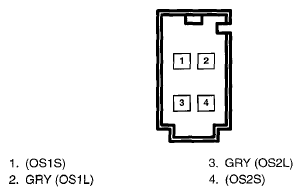

Fig 2: ODS Unit Connector Terminal - Connector B (View 223)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Connector C
- To Upper Element of Sensor

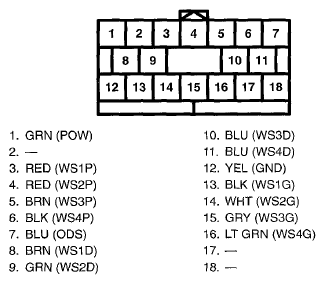

Fig 3: ODS Unit Connector Terminal - Connector C (View 223)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Connector D
- On ODS Unit Harness
Fig 4: ODS Unit Connector Terminal - Connector D (View 223)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
