PCM Connector End View (View 224)

Left Side of Engine Compartment
Connector A
- BLK/WHT
- On Left Engine Compartment Wire Harness

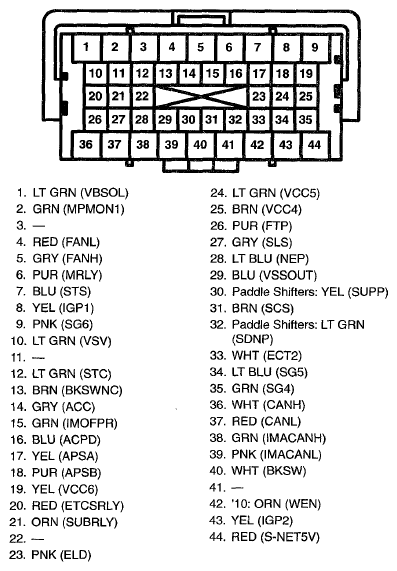

Fig 1: PCM Connector Terminal - Connector A (View 224)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Connector B
- BLK/GRY
- On Engine Wire Harness

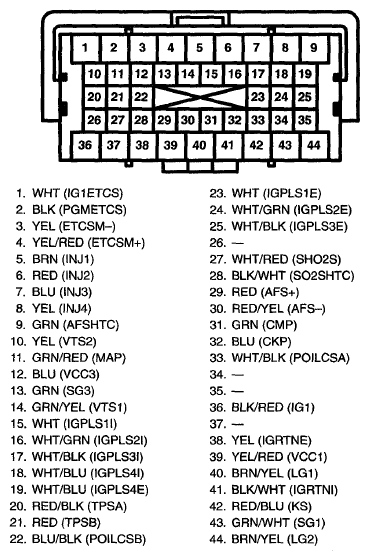

Fig 2: PCM Connector Terminal - Connector B (View 224)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Connector C
- BLK/GRN
- On Engine Wire Harness

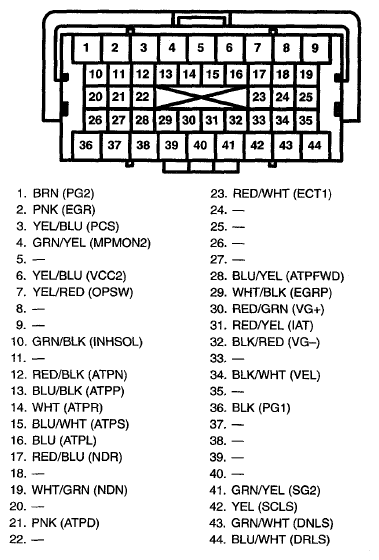

Fig 3: PCM Connector Terminal - Connector C (View 224)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
