Power Mirror Switch Connector End View (View 190)
WHT
Left Side of Dash
On Dashboard Wire Harness

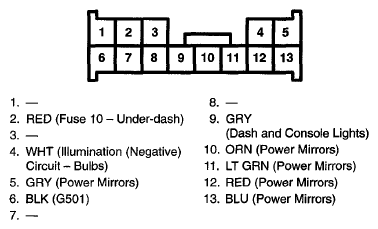

Fig 1: Power Mirror Switch Connector Terminal (View 190)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
