Power Window Master Switch Connector End View (View 203)

• GRY
• Driver's Door
• On Driver's Door Wire Harness

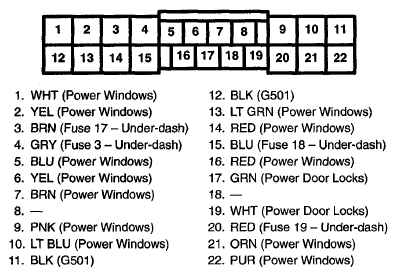

Fig 1: Power Window Master Switch Connector Terminal (View 203)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
