Rear Safing Sensor Connector End View (View 125)

• YEL
• Rear of Floor
• On Floor Wire Harness

'10:

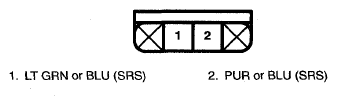

Fig 1: Rear Safing Sensor Connector Terminal (View 125)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

'11:

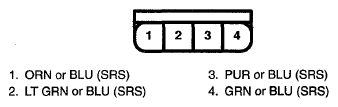

Fig 2: Rear Safing Sensor Connector Terminal (View 125)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
