Steering Gearbox Connector End View (View 129)
BLK/LT GRN
Left Rear of Engine Compartment
Connects Left Engine Compartment Wire Harness to EPS Sub-harness

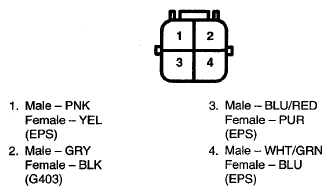

Fig 1: Steering Gearbox Connector Terminal (View 129)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
