TP Sensor/Throttle Actuator Connector End View (View 158)

• BLK
• Left Side of Engine
• On Engine Wire Harness

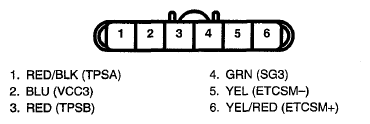

Fig 1: TP Sensor/Throttle Actuator Connector Terminal (View 158)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
