View 164 - Recirculation Control Motor Connector View
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

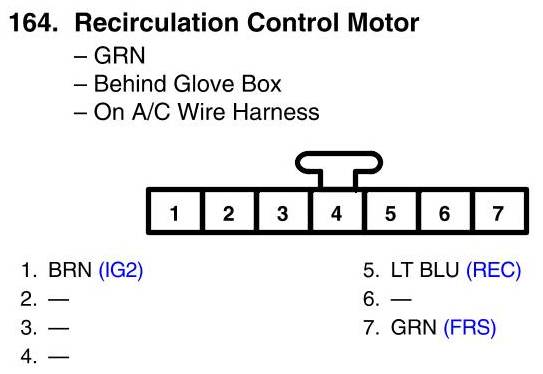

View 164 - Recirculation Control Motor Connector View
