Electric Load Sensor: Service and Repair

ELD Replacement

1. Remove the under-dash fuse/relay box Under-Dash Fuse/Relay Box Removal And Installation (Except Canada Models).

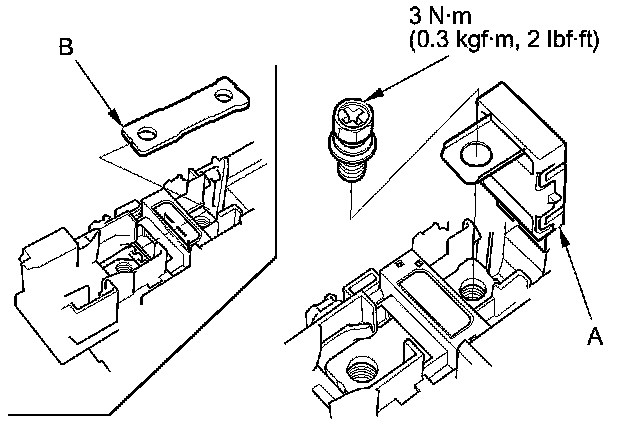

2. Remove the fuse (A).

3. Remove the joint bar (B).

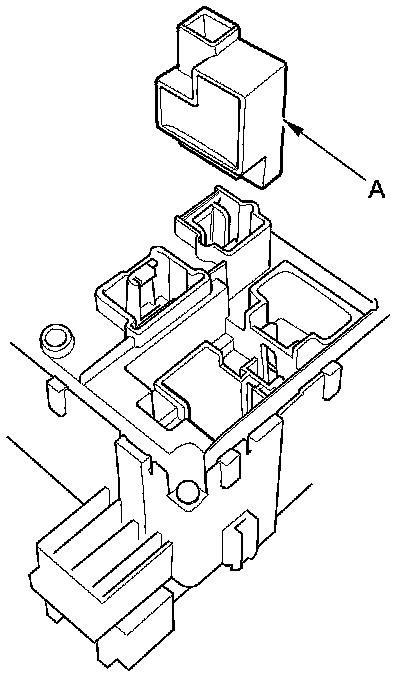

4. Turn over the under-dash fuse/relay box, then remove the ELD (A).

5. Install the parts in the reverse order of removal.
