System Specifications

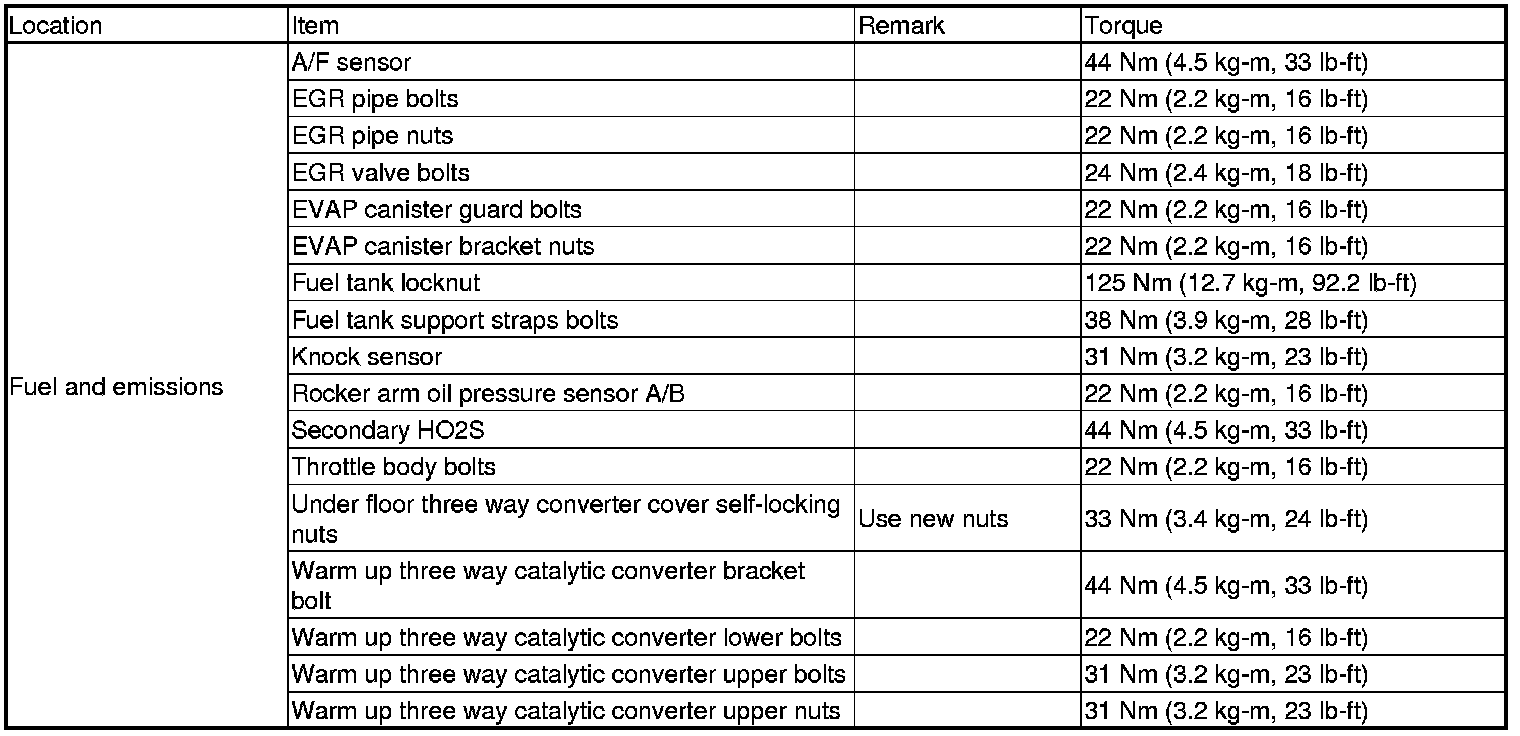

Torque Specifications

NOTE
Refer to the data for the precautions and complete procedures.
Refer to the data for the bolts/nuts not indicated here.

Fuel Emissions
