Driver's Junction Box 2 Connector End View (DPMS) (View 388)

Connector A

• GRY

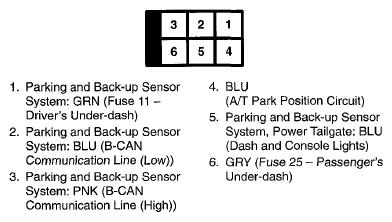

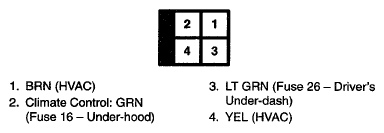

Fig 1: Drivers Junction Box 2 (DPMS) Connector Terminals - Connector A (View 388)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Connector B

• BLU

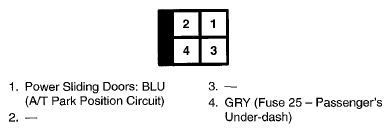

Fig 2: Drivers Junction Box 2 (DPMS) Connector Terminals - Connector B (View 388)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Connector C

• BRN

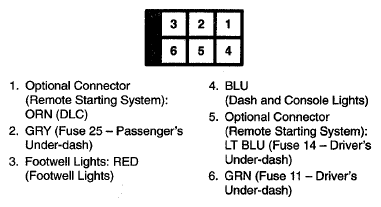

Fig 3: Drivers Junction Box 2 (DPMS) Connector Terminals - Connector C (View 388)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Connector D

• WHT

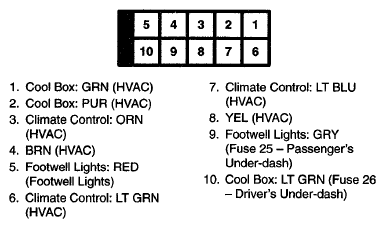

Fig 4: Drivers Junction Box 2 (DPMS) Connector Terminals - Connector D (View 388)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Connector E

• GRY

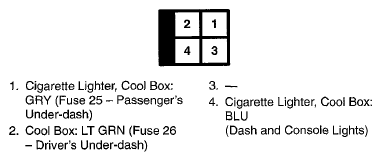

Fig 5: Drivers Junction Box 2 (DPMS) Connector Terminals - Connector E (View 388)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Connector F

• BLU

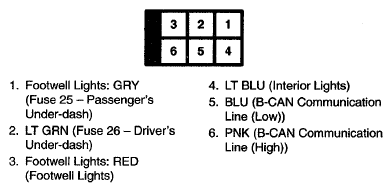

Fig 6: Drivers Junction Box 2 (DPMS) Connector Terminals - Connector F (View 388)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Connector G

• BRN

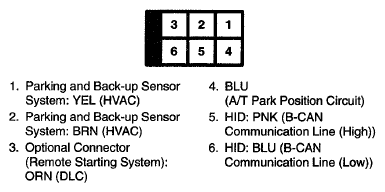

Fig 7: Drivers Junction Box 2 (DPMS) Connector Terminals - Connector G (View 388)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Connector H

• WHT

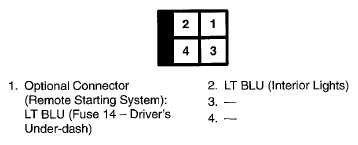

Fig 8: Drivers Junction Box 2 (DPMS) Connector Terminals - Connector H (View 388)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Connector J

• WHT

Fig 9: Drivers Junction Box 2 (DPMS) Connector Terminals - Connector J (View 388)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Connector K

• WHT

Fig 10: Drivers Junction Box 2 (DPMS) Connector Terminals - Connector K (View 388)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
