Fuse-to-Components Index

Fuse Number Fuse Name Amps See Component or Circuit Protected Notes
1 AS DOOR LOCK 7.5A POWER DISTRIBUTION Front Passenger's Door Lock Actuator/Knob Switch
2 RR AS DOOR LOCK 7.5A POWER DISTRIBUTION Right CESS Articulated Harness, Right Sliding Door Lock Actuator in the Right Sliding Door Remote Control Assembly
3 DR DOOR LOCK 7.5A POWER DISTRIBUTION Driver's Door Lock Actuator/Knob Switch/Key Cylinder Switch
4 FR AS DOOR UNLOCK 7.5A POWER DISTRIBUTION Front Passenger's Door Lock Actuator/Knob Switch
5 RR AS DOOR UNLOCK 7.5A POWER DISTRIBUTION Right CESS Articulated Harness, Right Sliding Door Lock Actuator in the Right Sliding Door Remote Control Assembly
6 DR DOOR UNLOCK 7.5A POWER DISTRIBUTION Power Door Lock Relay (DR UNLOCK) in the Driver's Under-dash Fuse/Relay Box
7 D/L MAIN 20A POWER DISTRIBUTION Power Door Lock Relay (LOCK) in the Driver's Under-dash Fuse/Relay Box, Power Door Lock Relay (UNLOCK) in the Driver's Under-dash Fuse/Relay Box
8 HACOP 10A POWER DISTRIBUTION Optional
9 DR PSD CLOSER (20A) POWER DISTRIBUTION Left Power Sliding Door Control Unit (Power Sliding Doors)
10 IG1 RR 15A POWER DISTRIBUTION Fuses 12 and 13 in the Rear Fuse Box
11 METER 7.5A POWER DISTRIBUTION A/T Reverse Diode A in the Driver's Under-dash Fuse/Relay Box, A/T Reverse Relay in the Driver's Under-dash Fuse/Relay Box, Driver's MICU in the Driver's Under-dash Fuse/Relay Box, Driver's Power Tailgate/Parking and Back-up Sensor Switch (Parking and Back-up Sensor System), Electrical Compass Unit (Electrical Compass), Gauge Control Module, Parking and Back-up Sensor Control Unit (Parking and Back-up Sensor System), Power Mirror Control Unit (DPMS), Power Seat Control Unit (DPMS), Shift Lever Connector, TPMS Control Unit (TPMS)
12 IG1 FR 20A POWER DISTRIBUTION Fuses 3, 4, 5, 6, and 7 in the Under-hood Fuse/Relay Box
13 ACC 7.5A POWER DISTRIBUTION ACC Cut Relay in the Driver's Under-dash Fuse/Relay Box, Audio Display-USB Adapter Control Unit (USB Adapter without Navigation), Audio Unit (without Navigation), Audio-Navigation Unit (Navigation), Cargo Area Accessory Power Socket Relay in the Passenger's Under-dash Fuse/Relay Box, Cigarette Lighter Relay (Mexico, Latin America) in the Passenger's Under-dash Fuse/Relay Box, Front Lower Accessory Power Socket Relay (Front Lower Accessory Power Socket) in the Passenger's Under-dash Fuse/Relay Box, Front Upper Accessory Power Socket Relay (USA, Canada) in the Passenger's Under-dash Fuse/Relay Box, Front Active Noise Cancellation Microphone (without HFL System), Front HFL-ANC Microphone (HFL System without Navigation), Front HFL-Navigation-ANC Microphone (HFL System with Navigation), HandsFreeLink Control Unit (HFL System), Steering Lock (Ignition Key Light/Ignition Key Switch/Key Interlock Solenoid), Interface Dial (Navigation), Navigation Display Unit (Navigation), Rear Active Noise Cancellation Microphone
14 STS 7.5A POWER DISTRIBUTION Optional Connector (Remote Starting System) (USA, Canada), PCM
Fig 1: Driver's Under-dash Fuse/Relay Box (6-13)
G07761382
Fuse Number Fuse Name Amps See Component or Circuit Protected Notes
15 DR P/SEAT (SLI) 20A POWER DISTRIBUTION Driver's Power Seat Adjustment Switch (without DPMS), Power Seat Control Unit (DPMS)
16 S/R (20A) POWER DISTRIBUTION Moonroof Control Unit/Motor (Moonroof)
17 RR DR P/W 20A POWER DISTRIBUTION Driver's MICU in the Driver's Under-dash Fuse/Relay Box, Left Rear Power Window Relay in the Driver's Under-dash Fuse/Relay Box
18 - - - Not Used
19 FR DR P/W 20A POWER DISTRIBUTION Power Window Master Switch
20 - - - Not Used
21 FUEL PUMP 20A POWER DISTRIBUTION Immobilizer-Keyless Control Unit, PCM, PGM-FI Main Relay 2 in the Driver's Under-dash Fuse/Relay Box
22 IG1 AS 15A POWER DISTRIBUTION Fuses 19, 20, 21, 22, and 23 in the Passenger's Under-dash Fuse/Relay Box
23 VSA 7.5A POWER DISTRIBUTION VSA Modulator-Control Unit, Yaw Rate Acceleration Sensor
24 ACGAS 7.5A POWER DISTRIBUTION Brake Pedal Position Switch, ELD Unit in the Main Under-hood Fuse Box
25 STRLD 7.5A POWER DISTRIBUTION PCM
26 IG2 HAC 7.5A POWER DISTRIBUTION A/C Compressor Clutch Relay in the Under-hood Fuse/Relay Box, A/C Condenser Fan Relay in the Under-hood Fuse/Relay Box, A/C Condenser Fan Relay/Fan Control Relay Diode in the Under-hood Fuse/Relay Box, AC Inverter Unit (AC Power Outlet), Automatic Dimming Inside Mirror (Automatic Dimming Inside Mirror), Climate Control Unit (Climate Control), Cool Box Control Motor (Cool Box), Cool Box Control Switch (Cool Box), Fan Control Relay in the Under-hood Fuse/Relay Box, Front Blower Motor Relay in the Relay Block, HVAC Control Unit (Manual A/C), Optional Connector (Automatic Dimming Inside Mirror) (Optional Connector (Automatic Dimming Inside Mirror)), Power Mirror Switch, Power Window Master Switch, Rear A/C Control Panel (Climate Control), Rear A/C Control Unit, Rear Blower Motor Relay in the Under-hood Fuse/Relay Box, Rear Window Defogger Relay in the Under-hood Fuse/Relay Box, Seat Heater Relay in the Passenger's Under-dash Fuse/Relay Box
27 DRL (7.5A) POWER DISTRIBUTION Relay Control Module (Control Circuit Board) in the Under-hood Fuse/Relay Box
28 ACC KEY LOCK 7.5A POWER DISTRIBUTION Driver's MICU in the Driver's Under-dash Fuse/Relay Box
29 DR P/SEAT (LUM) (7.5A) POWER DISTRIBUTION Driver's Lumbar Support Switch (Driver's Lumbar Support System)
30 TPMS 7.5A POWER DISTRIBUTION TPMS Control Unit (TPMS)
31 - - - Not Used
32 DR P/SEAT (REC) 20A POWER DISTRIBUTION Driver's Power Seat Adjustment Switch (without DPMS), Power Seat Control Unit (DPMS)
33 DR PSD MOTOR (40A) POWER DISTRIBUTION Left Power Sliding Door Control Unit (Power Sliding Doors)
34 - - POWER DISTRIBUTION Not Used

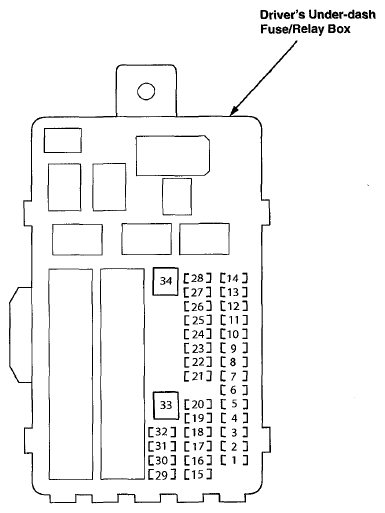

Fig 2: Driver's Under-dash Fuse/Relay Box (6-15)
G07761383
