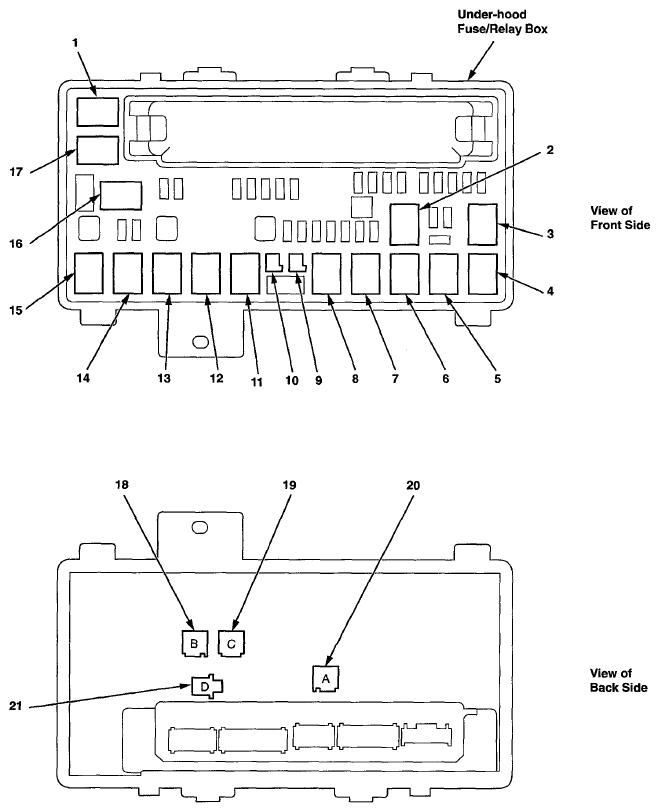

| 1 |
Rear Window Defogger Relay |
4 |
|
|
| 2 |
Headlight Low Beam Relay |
4 |
|
|
| 3 |
Taillight Relay |
4 |
|
|
| 4 |
Rear Blower Motor Relay |
4 |
|
|
| 5 |
Horn Relay |
4 |
|
|
| 6 |
Fan Control Relay |
5 |
|
|
| 7 |
PGM-FI Main Relay 1 |
4 |
|
|
| 8 |
PGM-FI Sub-relay |
4 |
|
|
| 9 |
A/C Condenser Fan Relay/Fan Control Relay Diode |
2 |
|
|
| 10 |
Radiator Fan Relay Diode |
2 |
|
|
| 11 |
Front Fog Light Relay |
4 |
|
|
| 12 |
Wiper Main Relay |
4 |
|
|
| 13 |
A/C Condenser Fan Relay |
4 |
|
|
| 14 |
ETCS Control Relay |
4 |
|
|
| 15 |
Radiator Fan Relay |
4 |
|
|
| 16 |
Ignition Coil Relay |
4 |
|
|
| 17 |
A/C Compressor Clutch Relay |
4 |
|
|
| 18 |
Under-hood Fuse/Relay Box Connector B |
1 |
Right Engine Compartment Wire Harness (Engine Compartment Branch) (see
RIGHT ENGINE COMPARTMENT WIRE HARNESS (ENGINE COMPARTMENT BRANCH)
) |
|
| 19 |
Under-hood Fuse/Relay Box Connector C |
1 |
Right Engine Compartment Wire Harness (Engine Compartment Branch) (see
RIGHT ENGINE COMPARTMENT WIRE HARNESS (ENGINE COMPARTMENT BRANCH)
) |
|
| 20 |
Under-hood Fuse/Relay Box Connector A |
1 |
Right Engine Compartment Wire Harness (Engine Compartment Branch) (see
RIGHT ENGINE COMPARTMENT WIRE HARNESS (ENGINE COMPARTMENT BRANCH)
) |
|
| 21 |
Under-hood Fuse/Relay Box Connector D |
2 |
Right Engine Compartment Wire Harness (Engine Compartment Branch) (see
RIGHT ENGINE COMPARTMENT WIRE HARNESS (ENGINE COMPARTMENT BRANCH)
) |
|
